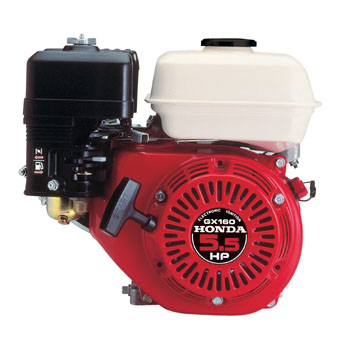

Honda 5.5 HP Gasoline Engine GX160



SKU: GX160

Honda GX160 5.5 HP horizontal shaft gasoline engine

Displacement (cc) 160

Shaft Dimensions Diameter x L (in.) 3/4 x 2 7/16

Application Pressure washers, compressors, log splitters and chipper/shredders

Torque (ft./lbs.) 7.9 at 2,900 RPM

Shaft Horizontal

Engine Type OHV

Recoil Start

Mounting Base L x W (in.) 6.38 x 3.15 x 3.35

Bolt Circle (in.) 3 5/8

PTO Height (in.) 4.17

Shaft Keyway (in.) 3/16

Shaft End Tapped (in.) 5/16-24

Max. RPM 3,900

Ignition System Transistorized Magneto

Fuel Tank Capacity .97 gallon

Oil Capacity (qt.) .63

Air Cleaner Type Dual element

Low Oil Alert

Shaft Rotation CCW

Compression Ratio 8.7:1

Cylinder Bore Cast iron

Dimensions L x W x H (ft., in.) 12.3 x 14.3 x 13.2

Call us at 1-800-735-3507 to order
